| Product Overview |
|
| Model |

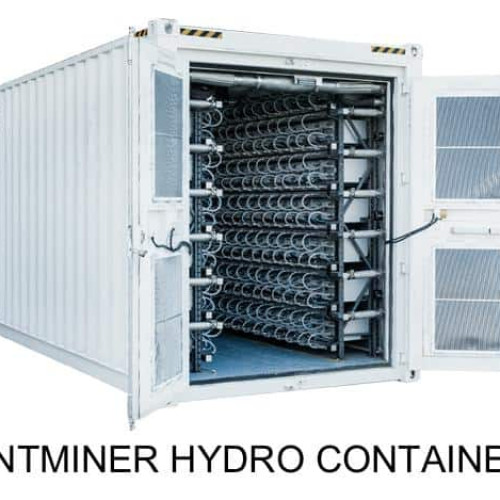

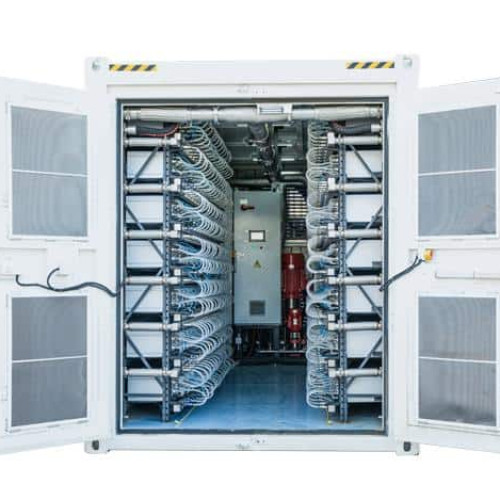

ANTSPACE HK3 V6 |
| Dimensions (L*W*H) (mm) |
6058*2438*2896 |
| Miner Capacity |
210 units -S19 Hyd. Series miner |
| Container Certification |
China Classification Society Certification |
| Safety Certification |
NFPA 79:2021 UL 508A:2018 R8.21 CSA C22.2 No. 14-18 ANSI/ISO 12100:2012 IEC 60204 Ed 5.1 2009 |
| Operating Power(kW) |
1047~1050 |
| PUE(Power Usage Effectiveness) |
1.022(Excluding cooling tower)/1.036(Including cooling tower) |
| Input Voltage and Frequency |
400V±5% 50/60Hz |
| Detailed Characteristics |
|
| Shipping Weight(T) |
8 |
| Operating Weight (T) |
12 |
| Main Switch of Power Distribution Cabinets(A) |
1200 |
| Rated Current(A) |
952 |
| Standard Power(kW) |
1049 |
| Maximum Power(kW) |
1050 |
| Rated Current per Miner(A) |
10 |
| Inlet Cable |
The inlet cables can withstand high-voltage of above 600V, with the following requirements per phase: L1 single core cable 600kcMil(300mm²)x4 L2 single core cable 600kcMil(300mm²)x4 L3 single core cable 600kcMil(300mm²)x4 N Single-core cable 600kcMil(300mm²)x4 PE single-core cable 500kcMil(240mm²)x2 |
| Connection Interface(Cooling Tower) |
DN100（ISO2852 PN16） |
| Connection Interface(Plate Heat Exchage Interface) |
DN100(GB/T 9119-2010 PN16 DN100) |
| Flow Rate(m³/h) |
＞85 |
| Quantity of ANTSPACE powered by one 2500kVA Transformer |
2 |
