Smart Single-Phase PDU 80a
Smart Single-Phase PDU 80a - Image 2
Smart Single-Phase PDU 80a - Image 3

Smart Single-Phase PDU 80a

$52,269.78

Category:

Description

ModelSmart Single-Phase PDU

Also Known As4-Port C19 with IP Monitoring

Consume, kWhmax consumption 20kw

Voltage220-250v

Temperature-5-40c

Warranty360days

Description for: Smart Single-Phase PDU 80a

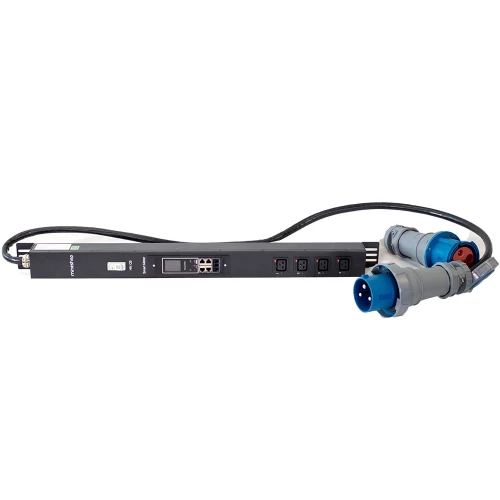

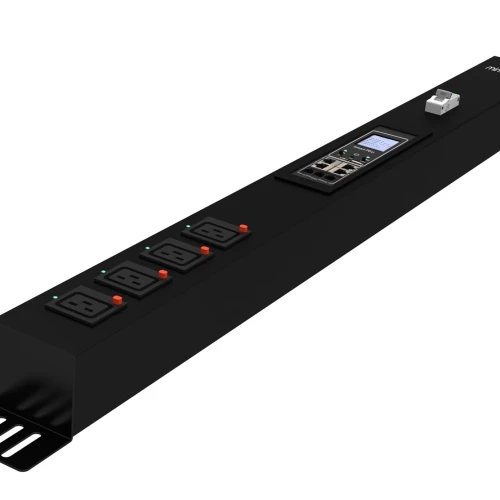

⚡ Smart Single-Phase PDU – 4-Port C19 with IP Monitoring for ASIC Miners

Boost your mining efficiency with this high-performance, smart-enabled PDU. Designed specifically for industrial mining setups, this 80A single-phase power distribution unit provides real-time power monitoring, remote access, and secure energy delivery via 4 x C19 lockable outlets.

📐 Technical Specifications

Feature Specification
Model Smart Single-Phase 80A PDU
Input Plug IEC 60309, 250V, 125A, IP67-rated (6H)
Input Cable 3 x 16mm² (2m length)
Total Output Ports 4 x Lockable IEC C19 (20A per port)
Total Output Capacity 80A @ 250V = 20kW max
Breaker HM Circuit Breaker, 80A – IP-rated
Smart Meter Hot-swappable digital meter with live readouts
Smart Control Access IP-enabled monitoring, remote reboot, alerts
Monitoring Voltage, current, power factor, consumption logs
PDU Dimensions 970mm x 75mm x 100mm
Mounting Bracket 31mm depth tabs included
